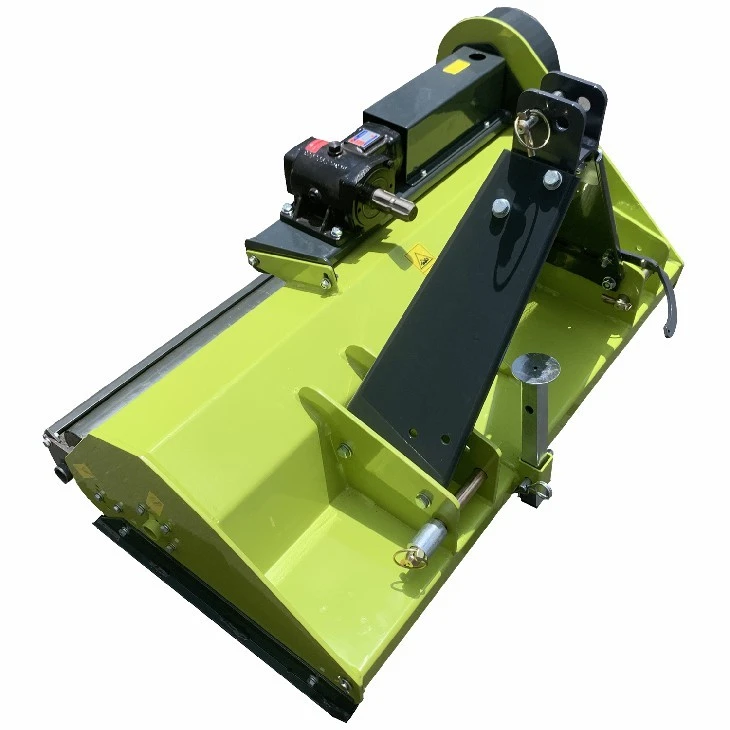

EF Light Duty Flail Mower Mulcher
Description
Technical Parameters
The EF Mower has a dynamically balanced rotor shaft that is driven by 2 or 3 belts depending on the working width with 400g hammer, even though light duty mower, also can guarantees a great mowing effect . The cutting height is adjusted by the side skid shoes.
| MODEL |
EF85 |
EF95 |
EF105 |
EF115 |
EF125 |
|
|
Structure Weight |
140kg |
147kg |
152kg |
157kg |
165kg |
|
|
Working Width |
829mm |
929mm |
1029mm |
1129mm |
1229mm |
|
|
PTO Turning Speed |
540r/min |
540r/min |
540r/min |
540r/min |
540r/min |
|
|
Flail Type |
400g Hammer/Y Blade |
|||||
|
Number of Flail |
Hammer 12 /Y Blade 24 |
Hammer 14 /Y Blade 28 |
Hammer 18 /Y Blade 36 |
Hammer 18 /Y Blade 36 |
Hammer 18 /Y Blade 36 |
|
|
Tractor HP |
14-18hp |
16-20hp |
20-30hp |
20-30hp |
25-35hp |
|
|
MODEL |
EF135 |
EF145 |
EF155 |
EF165 |
EF175 |
|
|
Structure Weight |
178kg |
188kg |
201kg |
213kg |
224kg |
|
|
Working Width |
1329mm |
1429mm |
1529mm |
1629mm |
1729mm |
|
|
PTO Turning Speed |
540r/min |
540r/min |
540r/min |
540r/min |
540r/min |
|
|
Flail Type |
Y Blade/400g Hammer |
|||||
|
Number of Flail |
Hammer 24 /Y Blade48 |
Hammer 24 /Y Blade48 |
Hammer 24 /Y Blade48 |
Hammer 24 /Y Blade48 |
Hammer 30 /Y Blade 60 |
|
|
Tractor HP |
25-35hp |
25-35hp |
30-40hp |
30-40hp |
30-40hp |
|
